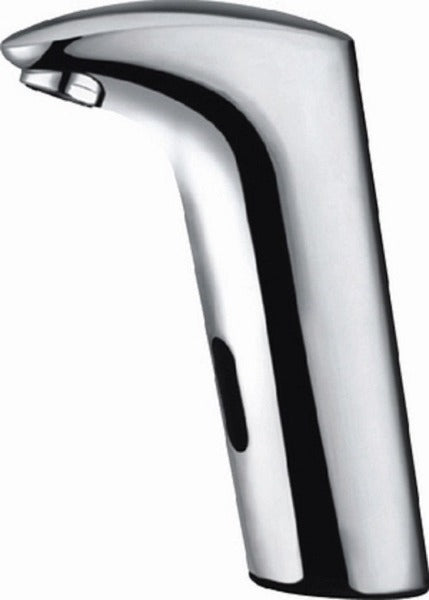

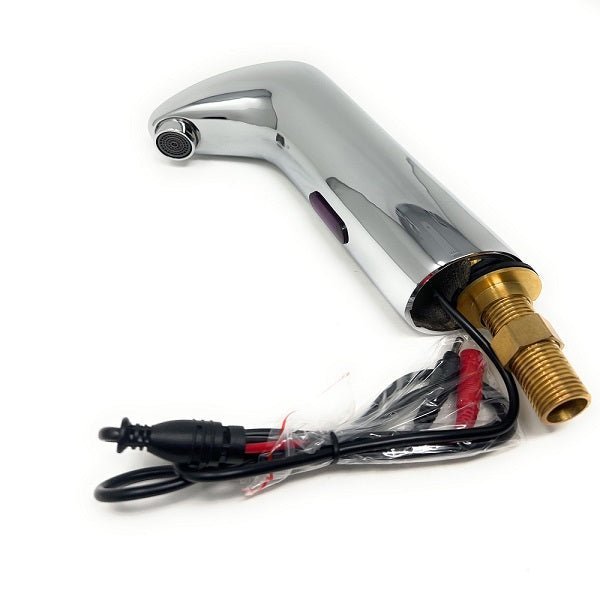

The Cascada SmartFlow automatic sensor faucet is designed for everyday use in residential and commercial washrooms. Touch-free operation helps reduce contact, while the included deck plate allows easy replacement of traditional three-hole faucets without modifying the countertop.

Designed for Simple Replacement

The supplied deck plate (trim) covers existing three-hole sink openings, making this faucet suitable for upgrades where drilling or surface changes are not desired.

Everyday Functional Benefits

• Hands-free sensor operation
• Compatible with single-hole and three-hole sinks
• Automatic shut-off to control water use
• Suitable for home and commercial wash areas

Touch-Free Sensor Operation

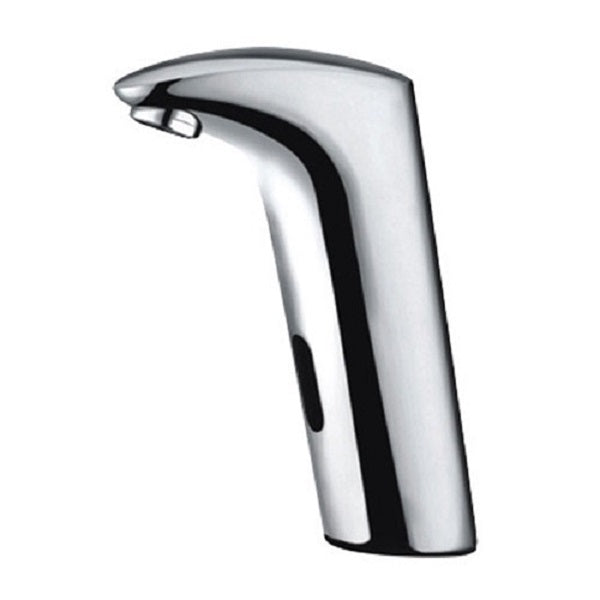

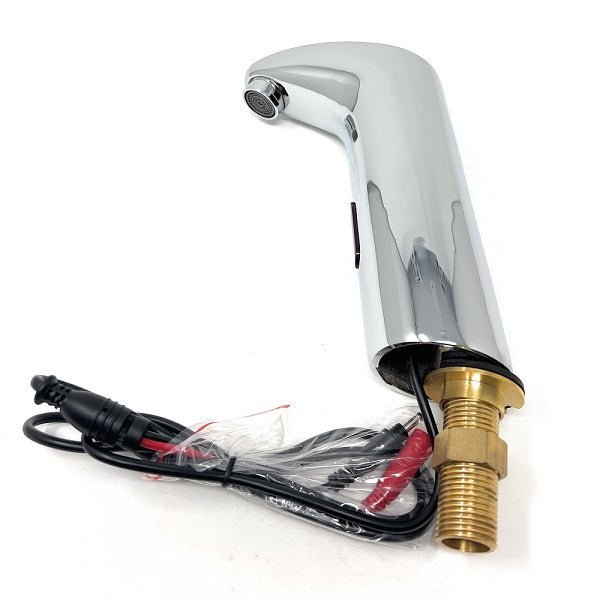

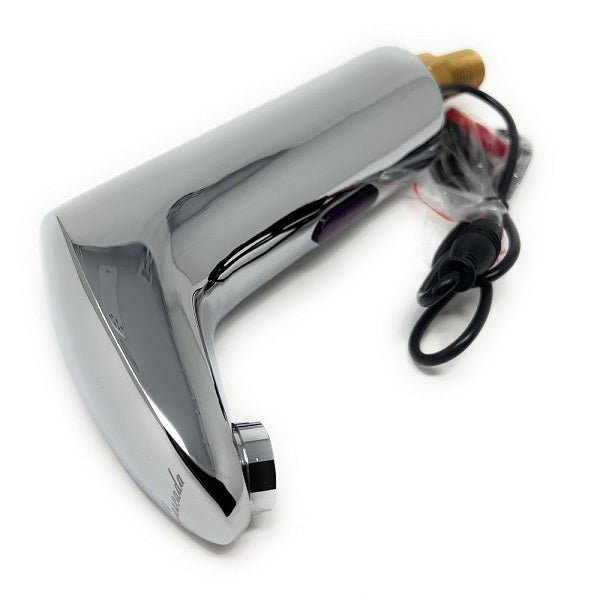

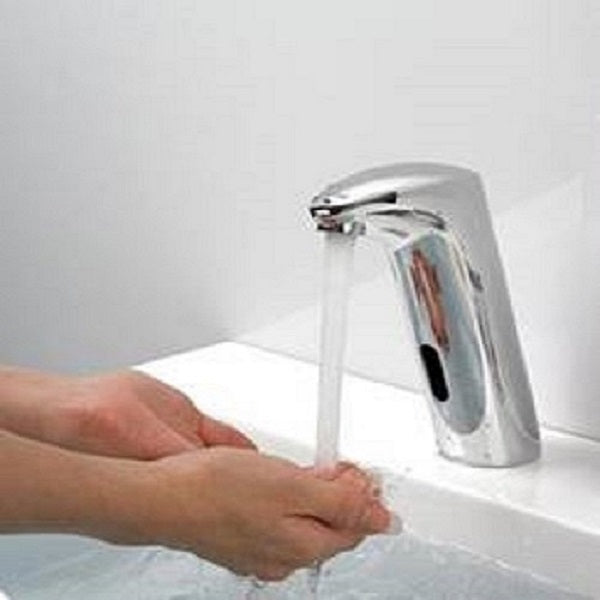

An infrared sensor activates water flow when hands are detected and stops automatically when hands are removed. This supports cleaner use in shared spaces such as offices, hotels, and public washrooms.

Energy and Water Control

The faucet operates with low energy consumption and helps reduce unnecessary water flow. Sensor sensitivity can be adjusted so water starts and stops at a comfortable distance.

Build and Appearance

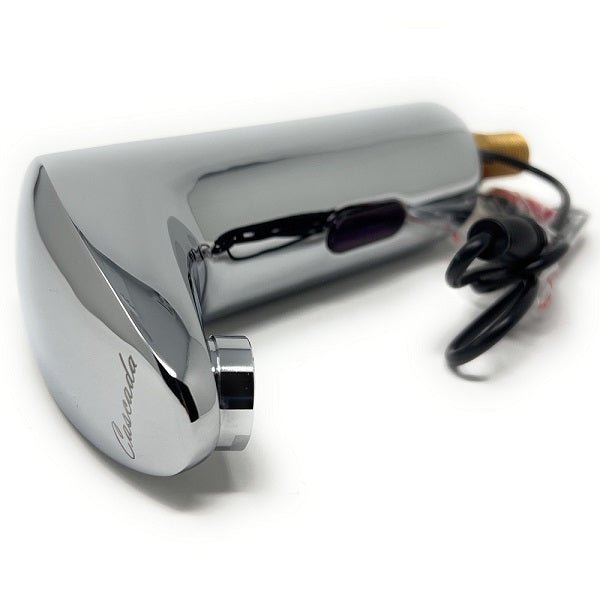

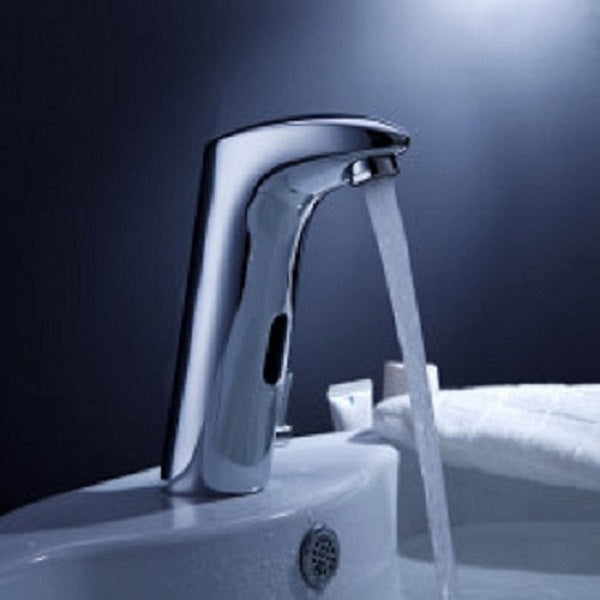

Made from durable materials with a polished chrome finish, the SmartFlow faucet maintains its appearance while handling frequent daily use.

Product Features

• Infrared sensor operated, touch-free use
• Energy-saving design for extended battery life
• Waterproof sensor components
• Low battery LED indicator
• Self-adjusting sensing distance
• Automatic power cut-off after continuous use
• Cold and hot water mixing by control knob

Specifications

• Infrared sensor operated, touch-free operation
• Advanced energy-saving design for long-lasting battery life
• Waterproof sensor components
• Weak battery LED light indicator
• Self-adjustable automatic sensing distance
• Operational water pressure range: 7 – 110 PSI
• Water supply pipe size: DN15 (G1/2")
• Ambient temperature range: 32°F – 130°F
• Sensing distance: 2" – 10" (self-adjustable)
• Time delay: 0.5 seconds

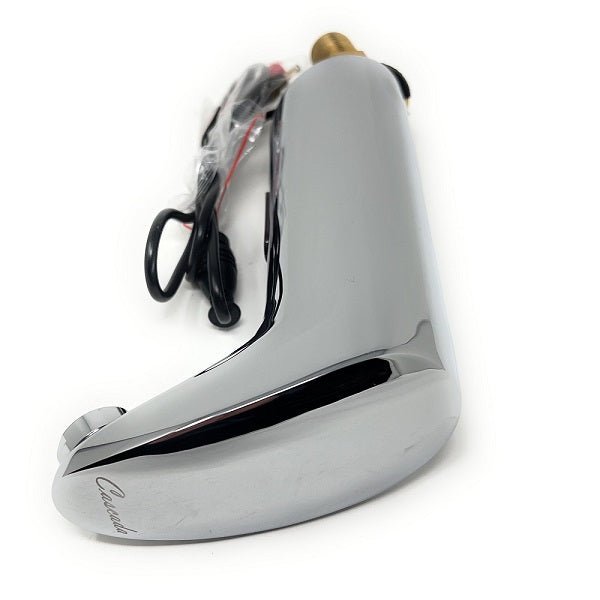

• Operation duration: power cuts off automatically after 60 seconds of continuous use
• Pop-up drain: Optional
• Color: Chrome

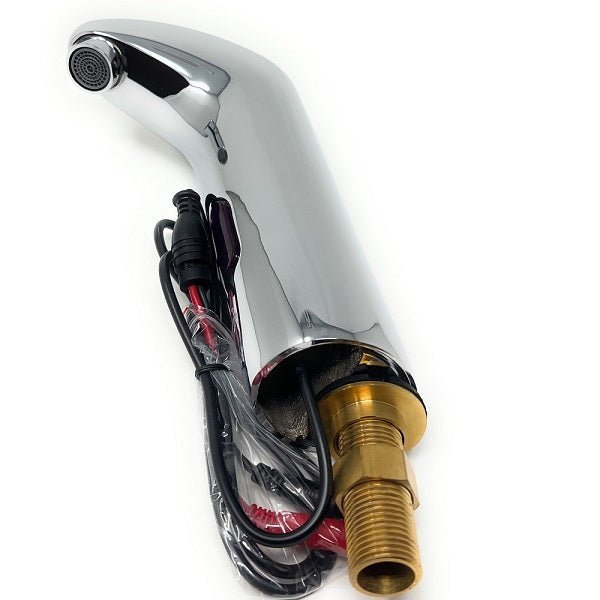

• Mixer: Cold and hot water mixing by knob

Technical Details

• Model Name: SmartFlow
• Manufacturer Part Number (MPN): CSHD508ACB09
• Certification: CE, WRAS; ADA Compliant
• Color / Finish: Polished Chrome
• Shape: Curved

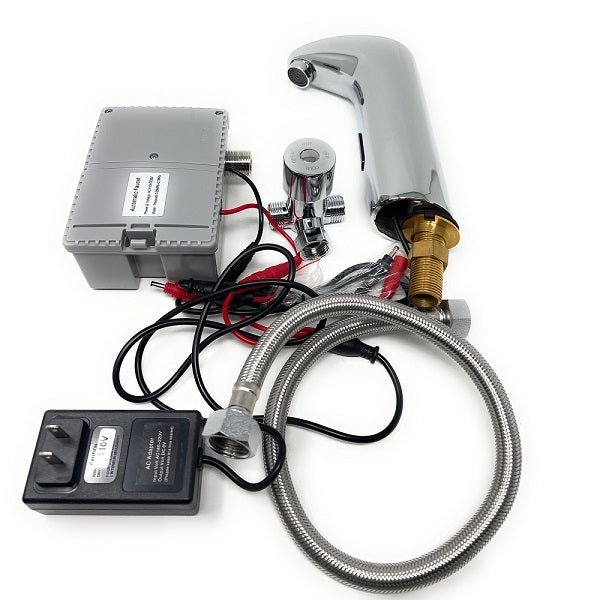

• Dual Power Supply: AA batteries or optional AC adapter (110–240V)
• Installation Method: Surface-mounted (includes deck plate for 3-hole sinks)
• Item Package Quantity: 1
• Number of Holes: 1
• Spout Height: 4.75 inches
• Spout Reach: 6 inches
• Handle/Lever Placement: Automatic
• Special Features: Easy to install
• Batteries Included: No
• Batteries Required: Yes
• Battery Cell Type: Alkaline / AA
• Average Battery Life: 2 years
• Item Package Weight: 7 pounds
• Package Dimensions: 10 × 15 × 12 inches
