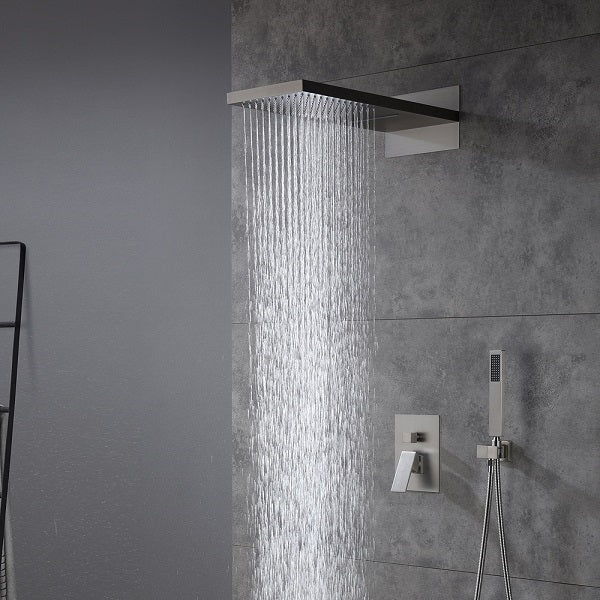

This shower system is designed for bathrooms that need a practical finish with a clean, modern appearance. The brushed nickel surface helps reduce visible water marks and fingerprints, making it suitable for everyday use.

Built for Long-Term Use

• Brushed nickel finish that hides water spots
• 304 stainless steel and solid brass construction
• Pressure-balanced valve for stable temperature
• Concealed wall-mounted layout

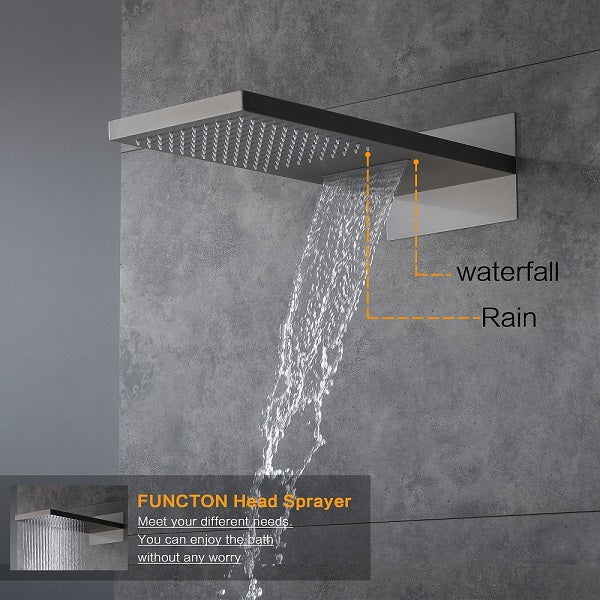

9" × 22" Dual-Function Top Shower

The large stainless steel top shower provides wide, even coverage. Rainfall and waterfall modes can be selected depending on preference, both delivering consistent flow across the full surface.

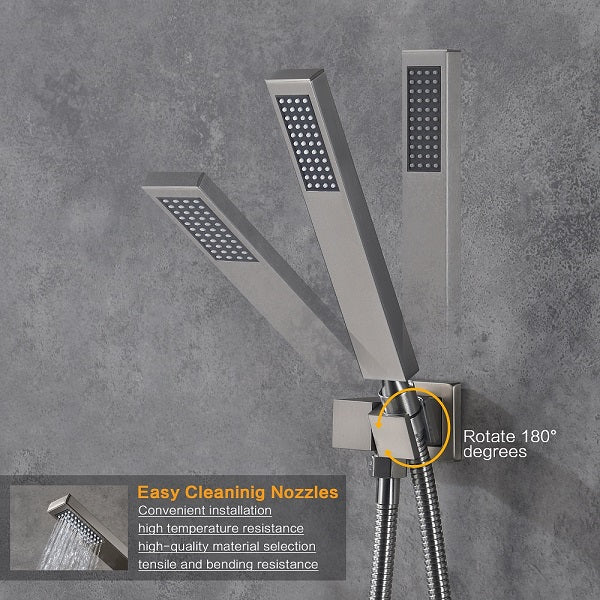

Hand Shower for Flexible Use

The hand shower supports daily tasks such as rinsing, cleaning, and targeted washing. It includes a 59-inch stainless steel hose and a 360° adjustable wall mount for easy positioning.

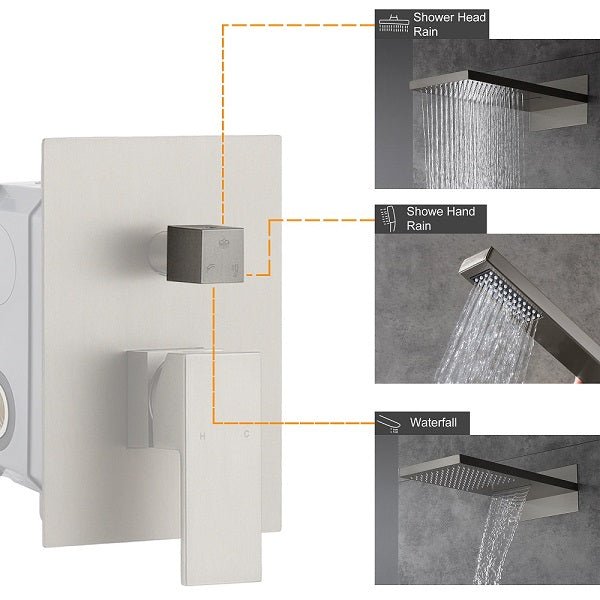

Balanced Water Control

The brass pressure-balanced valve helps limit sudden temperature changes caused by pressure fluctuations. Two handles separate function selection from temperature control for straightforward operation.

Concealed Installation

Embedded boxes for the top shower and valve allow the system to sit neatly inside the wall. This keeps exposed components minimal and maintains a clean wall finish.

Shower Modes

• Rainfall
• Waterfall
• Hand Shower

Technical Data

• Brand Name: Cascada Showers
• Model Name: Amadora
• Model Number: CSM6630-BN
• Installation Type: Wall Mounted (Concealed Installation)

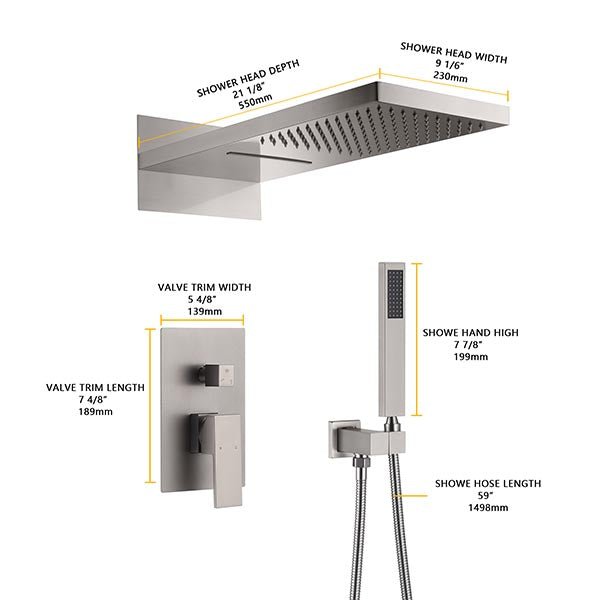

• Top Shower Size: 9" × 22"
• Product Color: Brushed Nickel
• Material: 304 Stainless Steel and Brass
• Shower Functions: Rainfall, Waterfall, Hand Shower
• Water Flow: 1.8 GPM each function
• Maximum Water Pressure: 120 PSI
• Minimum Water Pressure: 40 PSI
• Water Inlets: NPT 1/2"
• Water Outlets: NPT 1/2"
• Valve Type: Pressure-Balanced Hot & Cold Diverter Valve
• Number of Valve Handles: 2
  • Handle 1 – Function Switch (Rainfall / Waterfall / Hand Shower)
  • Handle 2 – Temperature Control
• Hand Shower Hose Length: 59 inches (304 Stainless Steel)
• Hand Shower Holder: 360° Adjustable Wall Mount
• Warranty: 10 Years

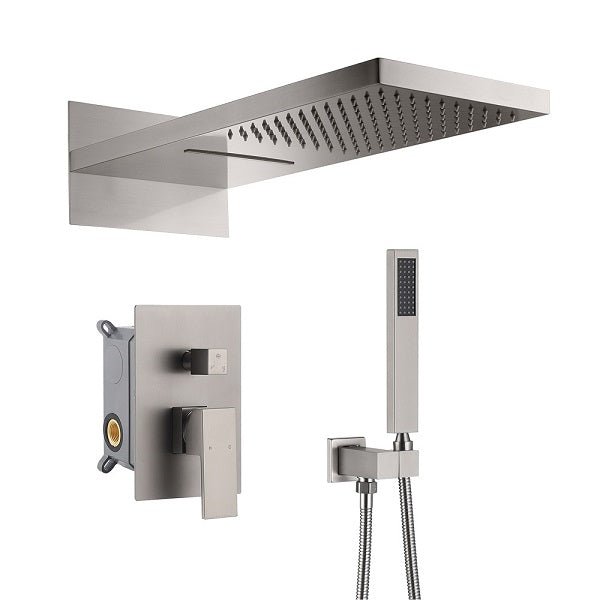

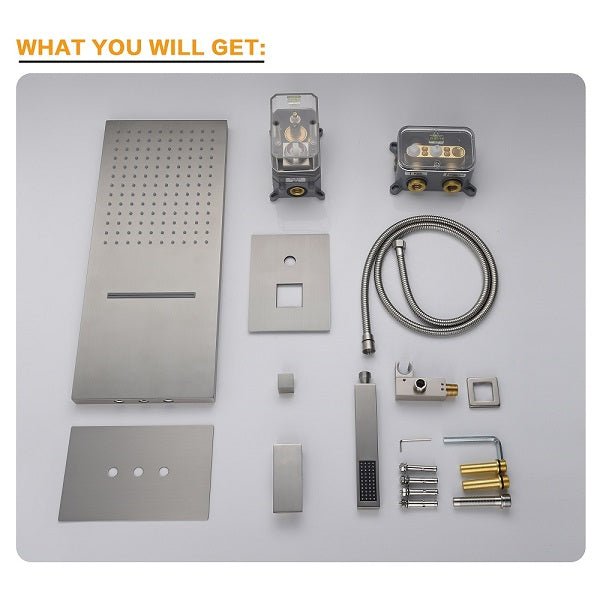

What’s in the Box

• 1 × 9" × 22" Top Shower Head with Embedded Box
• 1 × Brass Balance Valve with Rough-In Kit
• 1 × Stainless Steel Hand Shower
• 1 × 360° Swivel Shower Holder
• 1 × 59" Stainless Steel Hose
• 2 × Top Inlet Pipes
• 1 × Installation Kit & Manual
