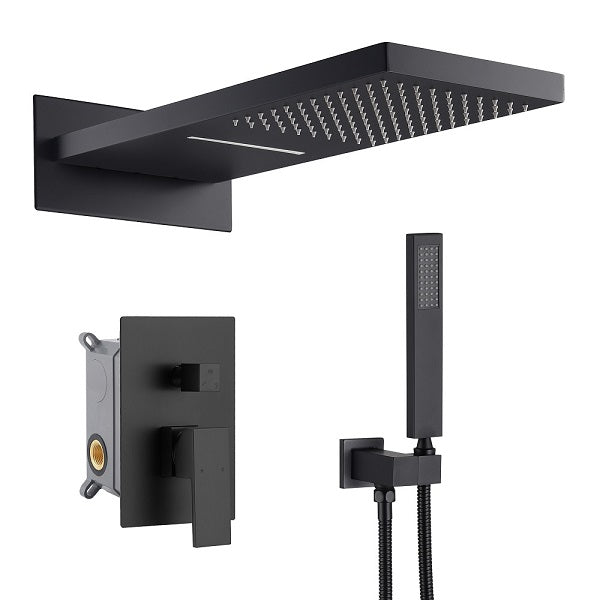

Cascada Amadora Matt Black Concealed Shower System

This shower system suits bathrooms that focus on contrast, clean lines, and practical daily use. The matt black finish pairs well with modern tiles and fixtures while keeping the overall look simple and uncluttered.

Designed for Daily Use

• Wide top shower for full coverage
• Multiple water flow options
• Stable temperature control
• Concealed wall-mounted design

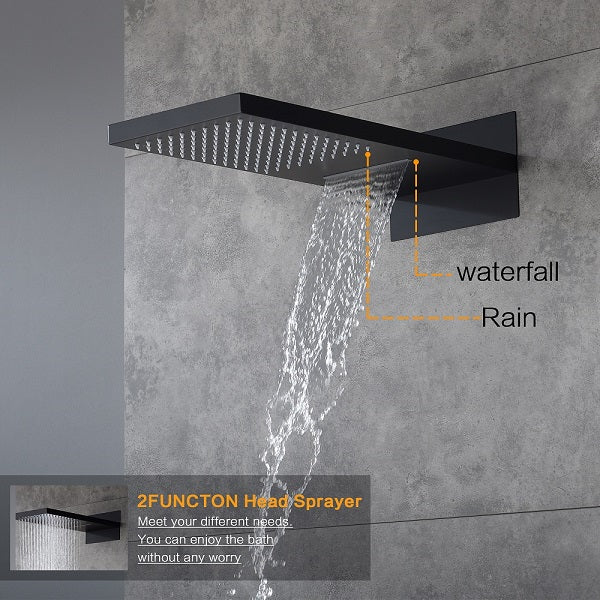

9" × 22" Top Shower with Two Flow Options

The stainless steel top shower allows you to switch between rainfall and waterfall modes. Both flows deliver even water distribution across the full surface, making each shower consistent and comfortable.

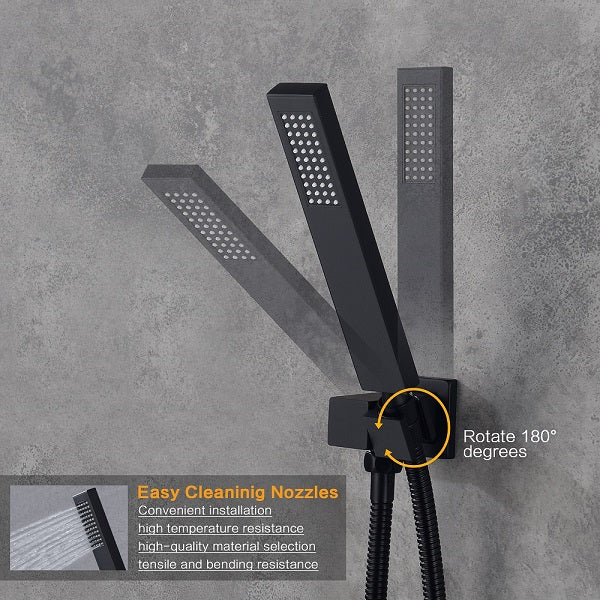

Hand Shower for Focused Tasks

The hand shower supports everyday needs such as rinsing, cleaning, and targeted washing. A 59-inch stainless steel hose and an adjustable wall holder allow flexible positioning.

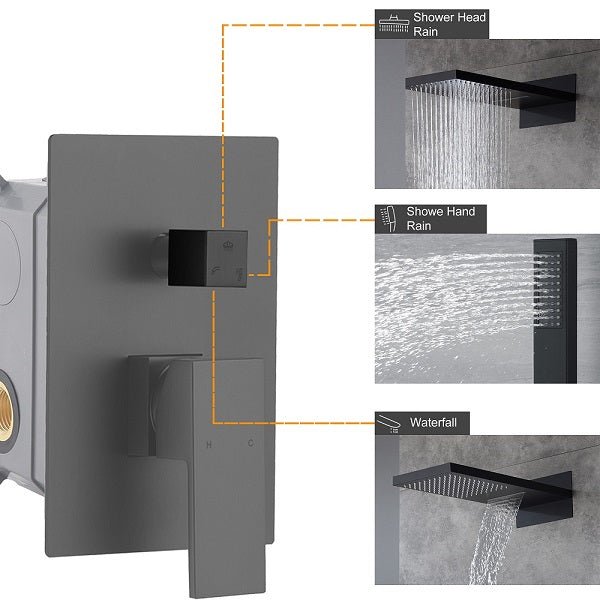

Pressure-Balanced Valve System

The brass pressure-balanced valve helps reduce sudden temperature changes caused by pressure fluctuations. Dual handles allow straightforward control of both function selection and temperature.

Concealed Installation

Embedded boxes for the top shower and valve allow all major components to sit neatly inside the wall. This keeps exposed hardware minimal and helps maintain a clean bathroom finish.

Available Shower Functions

• Rainfall
• Waterfall
• Hand Shower

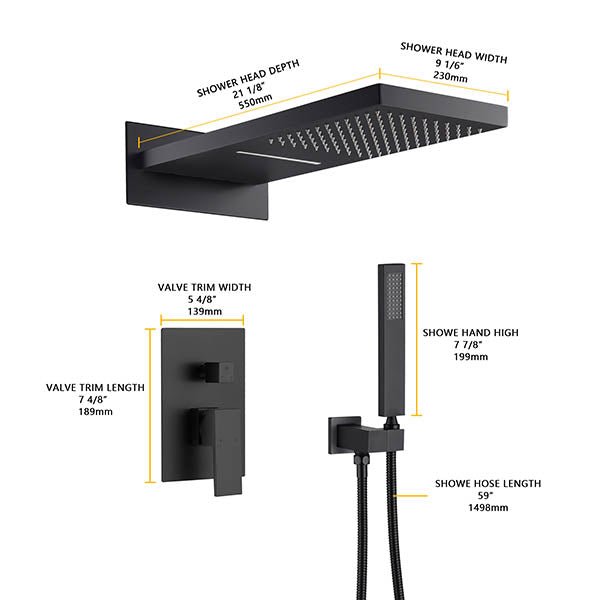

Technical Specifications

• Brand: Cascada Showers
• Model: Amadora
• Model Number: CSM6630-BLK
• Installation Type: Wall Mounted (Concealed)
• Top Shower Size: 9" × 22"
• Finish: Matt Black
• Material: 304 Stainless Steel and Brass
• Shower Functions: Rainfall, Waterfall, Hand Shower
• Water Flow: 1.8 GPM per function
• Operating Pressure: 40–120 PSI
• Water Inlets: NPT 1/2"
• Water Outlets: NPT 1/2"
• Valve Type: Pressure-Balanced Hot & Cold Diverter
• Handles: 2 (Function selection and temperature control)
• Hand Shower Hose: 59 inches (Stainless Steel)
• Hand Shower Holder: 360° Adjustable Wall Mount
• Warranty: 1 Year

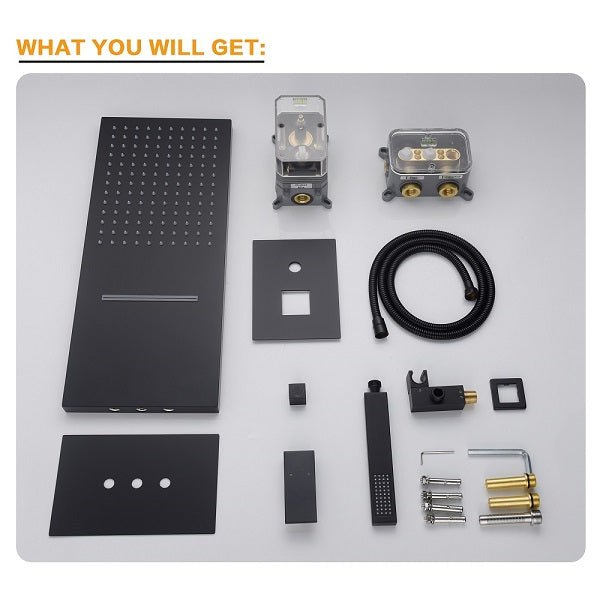

Package Contents

• 1 × 9" × 22" Top Shower Head with Embedded Box
• 1 × Brass Pressure-Balanced Valve with Rough-In Kit
• 1 × Stainless Steel Hand Shower
• 1 × Adjustable Wall Mount Holder
• 1 × 59" Stainless Steel Hose
• 2 × Top Inlet Pipes
• 1 × Installation Kit and Manual
