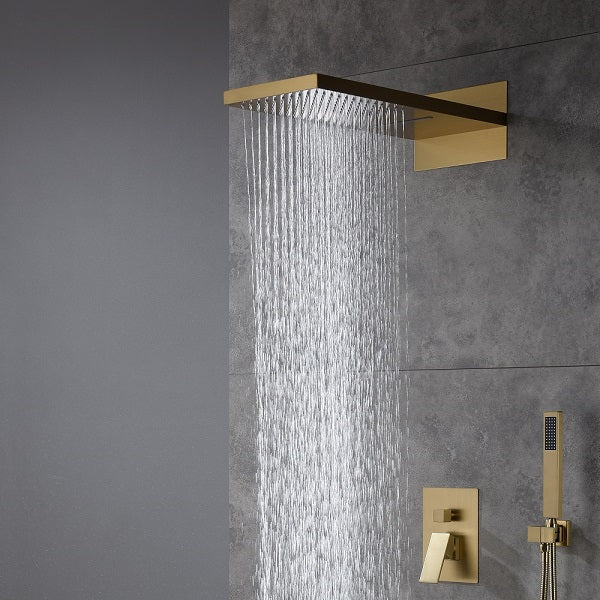

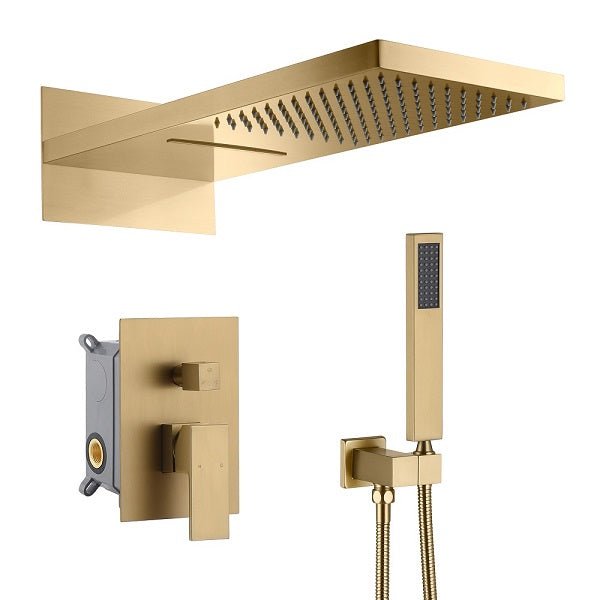

This shower system is designed for bathrooms that prefer a warm metallic finish without compromising everyday usability. The brushed gold surface adds character while staying practical for regular use.

Key Points at a Glance

• Wide 9" × 22" top shower for even coverage
• Rainfall and waterfall flow options
• Pressure-balanced valve for steady temperature
• Concealed wall-mounted installation

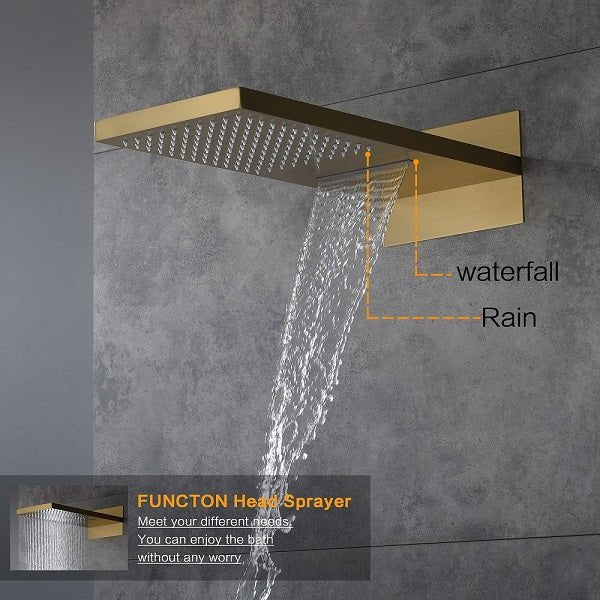

Top Shower with Full Coverage

The stainless steel top shower provides consistent water flow across its full width. Rainfall and waterfall modes can be selected depending on preference, with both options delivering smooth and even distribution.

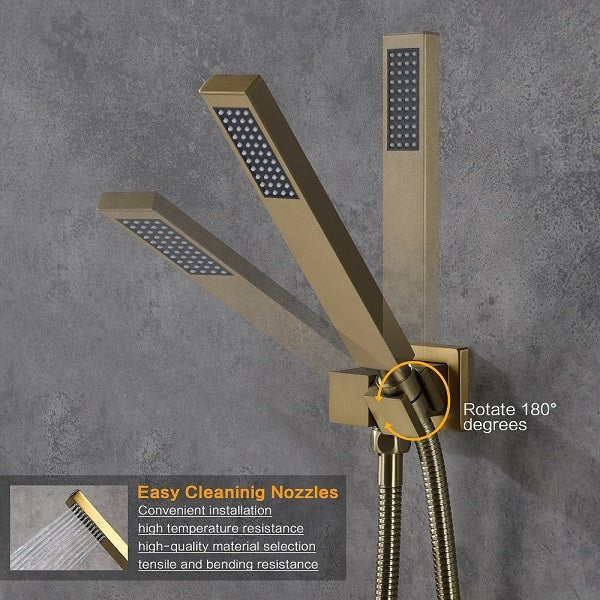

Hand Shower for Added Control

The hand shower supports daily tasks such as rinsing, cleaning, or focused washing. It includes a 59-inch stainless steel hose and a 360° adjustable wall holder for flexible positioning.

Reliable Temperature Management

The solid brass pressure-balanced valve helps reduce sudden temperature changes caused by water pressure fluctuations. Two handles allow clear separation between function selection and temperature control.

Concealed Installation Design

Embedded boxes for the top shower and valve allow the system to sit neatly inside the wall. This keeps visible components minimal and supports a clean wall finish.

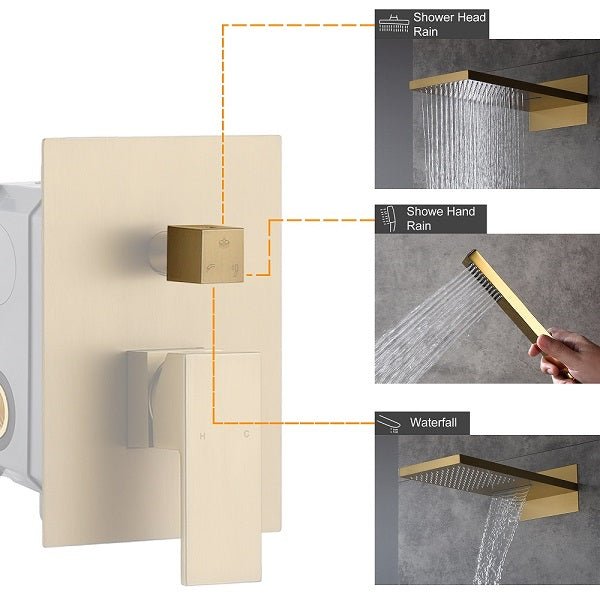

Shower Modes

• Rainfall
• Waterfall
• Hand Shower

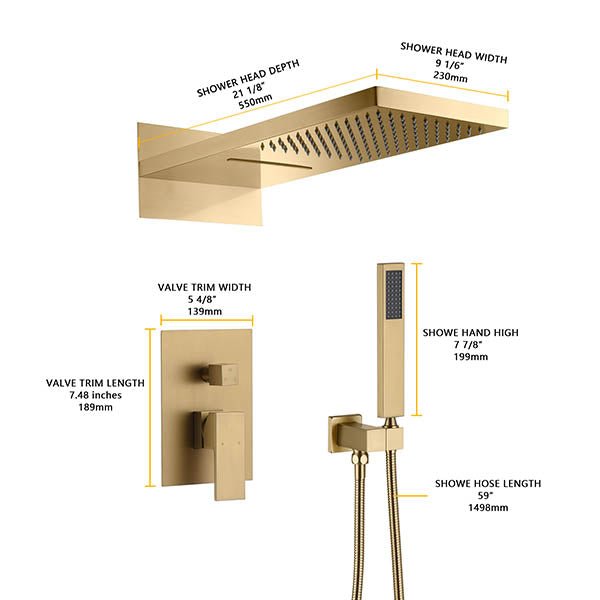

Technical Data

• Brand Name: Cascada Showers
• Model Name: Amadora
• Model Number: CSM6630-BGLD
• Installation Type: Wall Mounted (Concealed Installation)
• Top Shower Size: 9" × 22"
• Product Color: Brushed Gold
• Material: 304 Stainless Steel and Brass
• Shower Functions: Rainfall, Waterfall, Hand Shower
• Water Flow: 1.8 GPM each function
• Maximum Water Pressure: 120 PSI
• Minimum Water Pressure: 40 PSI
• Water Inlets: NPT 1/2"
• Water Outlets: NPT 1/2"
• Valve Type: Pressure-Balanced Hot & Cold Diverter Valve
• Number of Valve Handles: 2
  • Handle 1 – Function Switch (Rainfall / Waterfall / Hand Shower)
  • Handle 2 – Temperature Control
• Hand Shower Hose Length: 59 inches (304 Stainless Steel)
• Hand Shower Holder: 360° Adjustable Wall Mount
• Warranty: 10 Years

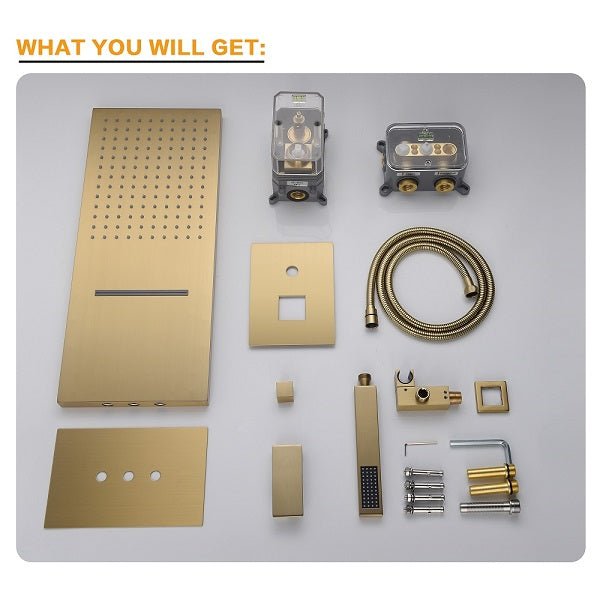

What’s in the Box

• 1 × 9" × 22" Top Shower Head with Embedded Box
• 1 × Brass Balance Valve with Rough-In Kit
• 1 × Stainless Steel Hand Shower
• 1 × 360° Swivel Shower Holder
• 1 × 59" Stainless Steel Hose
• 2 × Top Inlet Pipes
• 1 × Installation Kit & Manual
