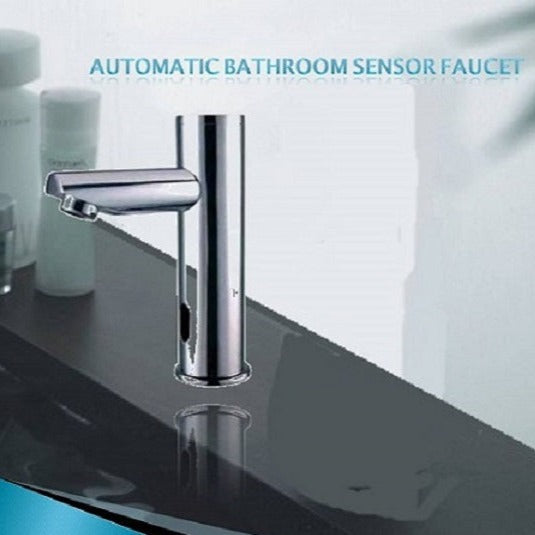

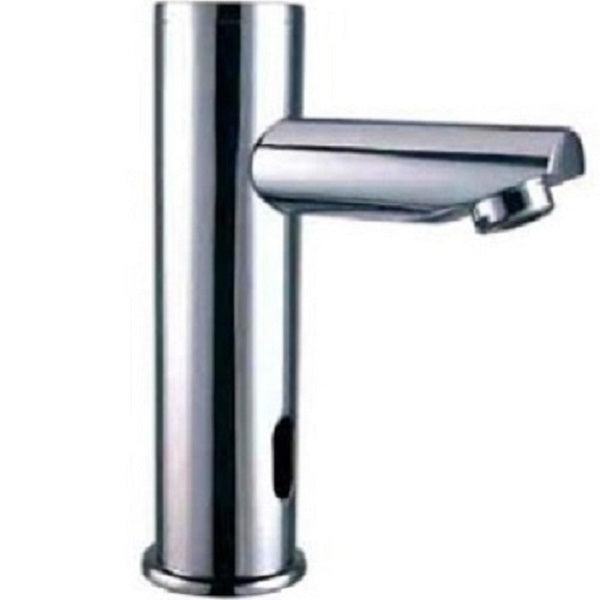

The EcoSprint Sensor Tap is designed for spaces that require hands-free operation, controlled water use, and simple temperature adjustment. It suits both residential and commercial settings and installs into a standard single-hole configuration.

Key Use Benefits

• Touch-free operation to reduce surface contact
• Automatic shut-off to limit water waste
• Hot and cold water mixing through an under-sink valve
• Suitable for public and private wash areas

Hands-Free Sensor Operation

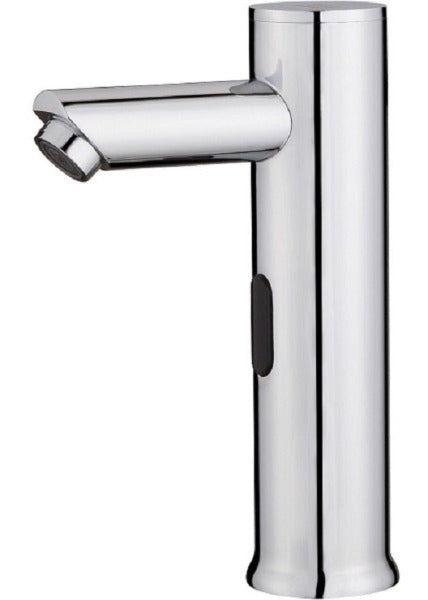

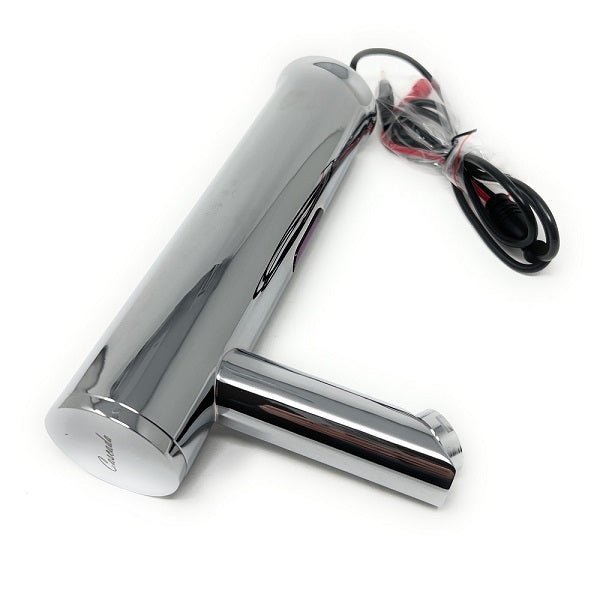

An infrared sensor activates water flow when hands are detected and stops automatically when hands are removed. This supports cleaner use in shared environments such as offices, restaurants, and washrooms.

Hot and Cold Water Control

The supplied under-sink mixing valve allows manual adjustment of water temperature. This provides flexibility while keeping the tap operation simple and consistent.

Water and Energy Control

The faucet is designed to reduce unnecessary water use through automatic shut-off and timed operation. An energy-saving circuit helps extend battery life, and a low-battery indicator provides advance notice when replacement is needed.

Build and Installation

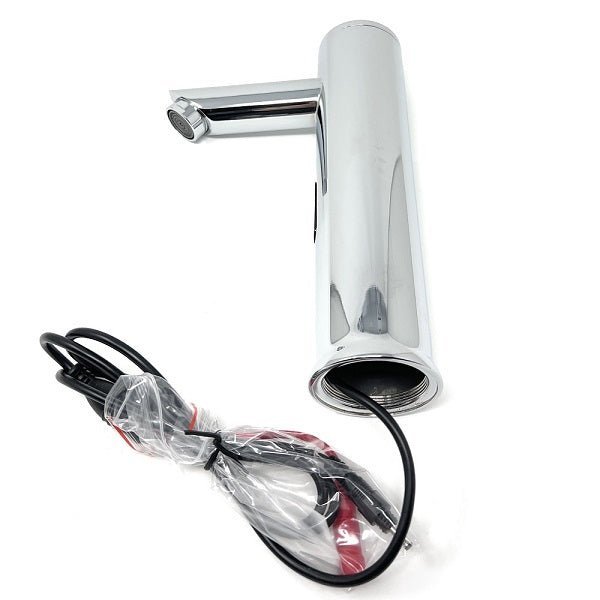

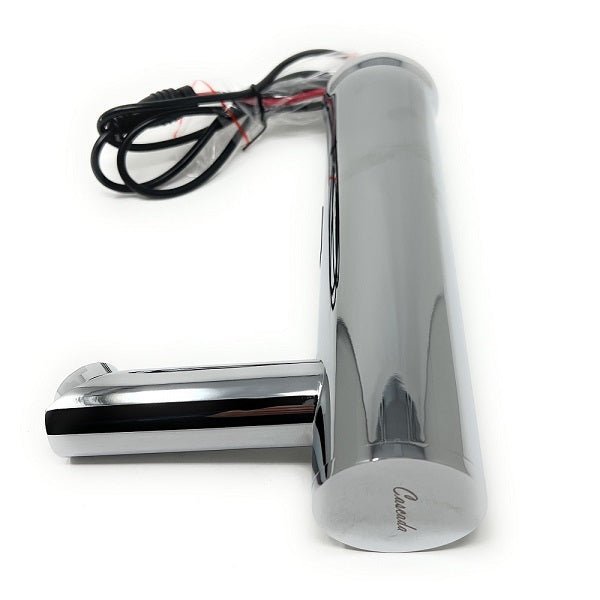

The tap is made from stainless steel with a polished chrome finish. All required installation components are included, allowing setup on standard plumbing systems with minimal effort.

Product Features

• Infrared sensor-operated, touch-free use
• Energy-saving design for extended battery life
• Waterproof sensor components
• Weak battery LED indicator

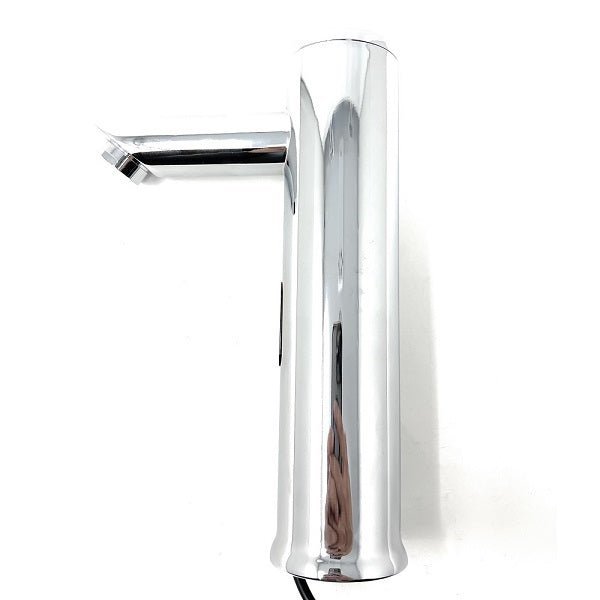

• Self-adjusting sensing distance
• Automatic cut-off after continuous use
• Cold and hot water mixing by control knob

Technical Specifications

• Model Name: AEcoSprint
• Manufacturer Part Number (MPN): CSHD509ACB10
• Certification: CE, WRAS, ADA Compliant
• Color / Finish: Polished Chrome
• Shape: Straight
• Installation Method: Surface-Mounted
• Number of Holes: 1
• Water Supply Pipe Size: DN15 (G1/2”)
• Operational Water Pressure: 7 – 110 PSI
• Ambient Temperature Range: 32°F – 130°F
• Sensing Distance: 2" – 10" (Self-adjustable)
• Time Delay: 0.5 seconds
• Operation Duration: Power cuts off after 60 seconds of continuous use
• Pop-Up Drain: Optional
• Power Supply: AA batteries or optional AC adapter (110–240V)
• Battery Type: Alkaline / AA
• Average Battery Life: 2 years
• Batteries Included: No
• Batteries Required: Yes

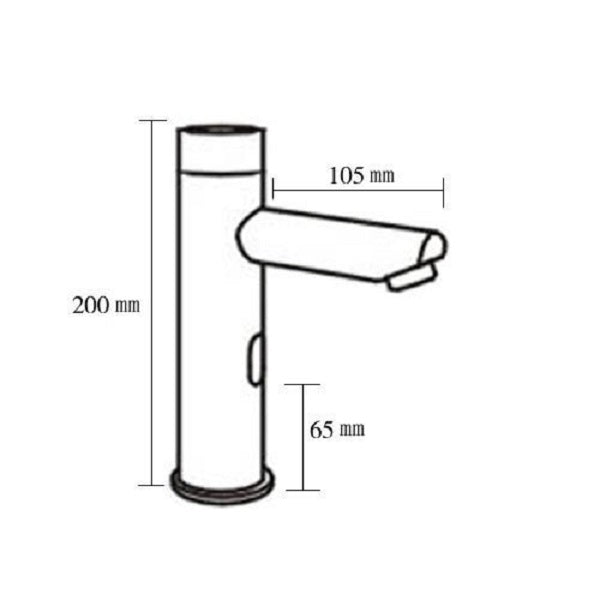

• Spout Height: 8.25 inches
• Spout Reach: 5 inches
• Item Package Quantity: 1
• Item Package Weight: 7 pounds
• Package Dimensions: 10 × 15 × 12 inches

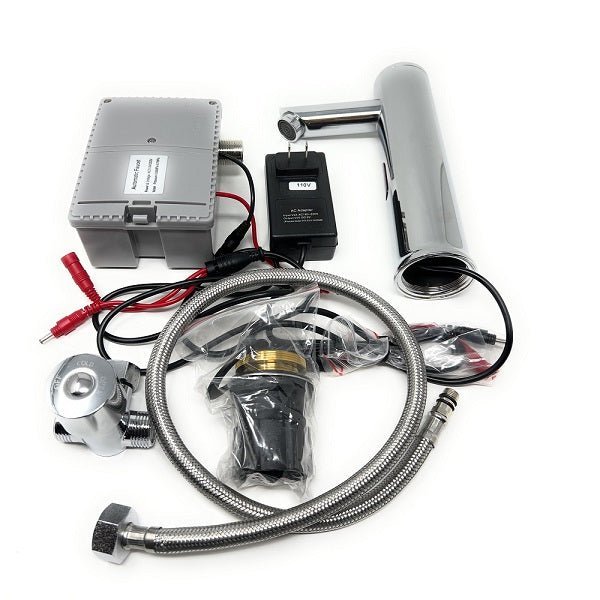

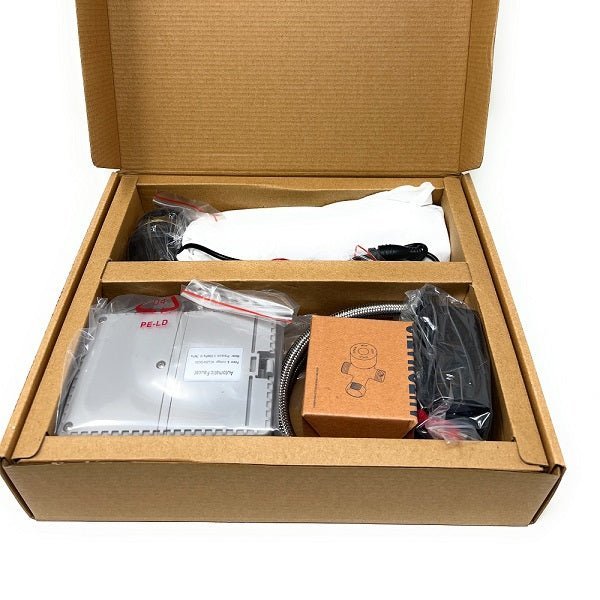

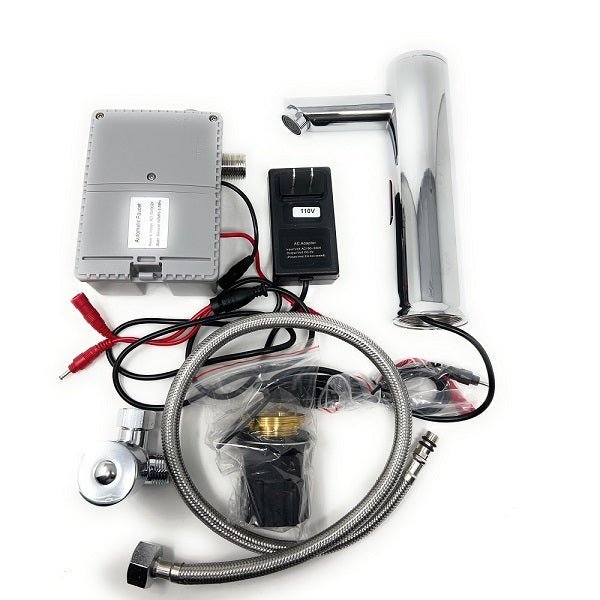

What’s Included

• 1 × EcoSprint Sensor Tap
• 1 × Hot & Cold Mixing Valve
• Installation Hardware
• User Manual
