Cascada Concealed Sensor Urinal Flush Valve with Manual Push Button – Smart & Convenient Control

Experience enhanced hygiene and functionality with the upgraded Cascada Concealed Sensor Urinal Flush Valve, now featuring a manual Push Button override. Designed for commercial and high-traffic restrooms, this modern flush valve combines hands-free operation with the convenience of a manual flush option—perfect for added reliability and user control.

Key Features:

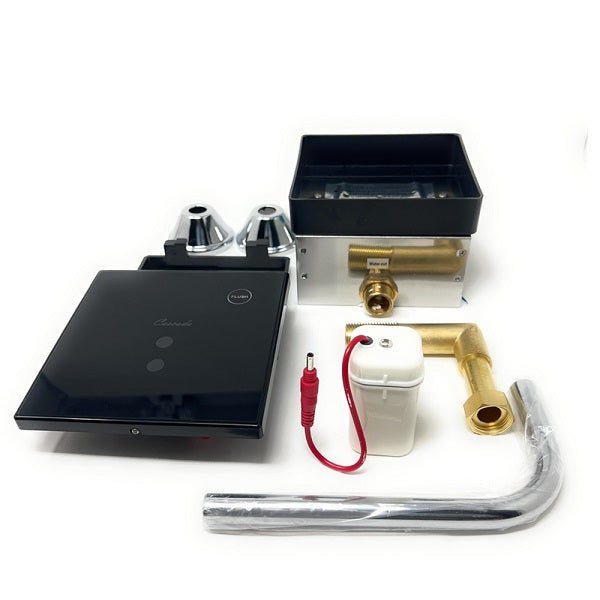

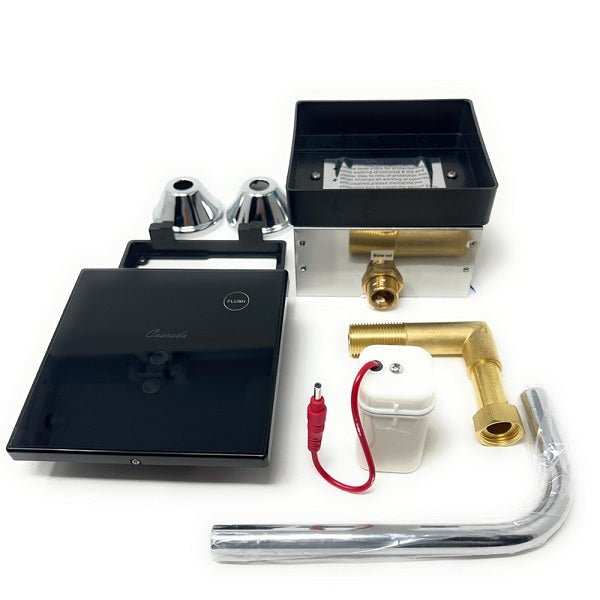

• Dual Operation: Infrared sensor ensures touchless activation, while the integrated manual push button allows for a flush override when needed.

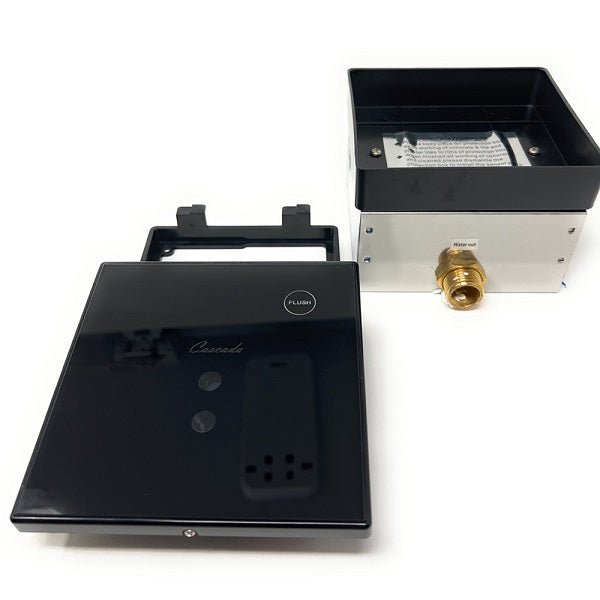

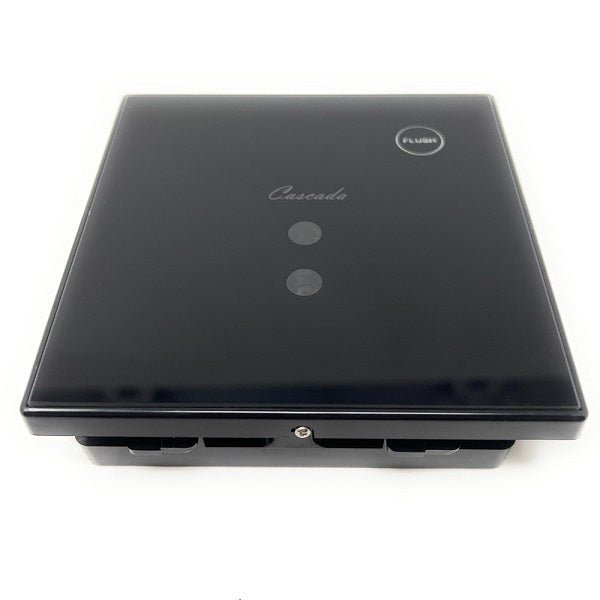

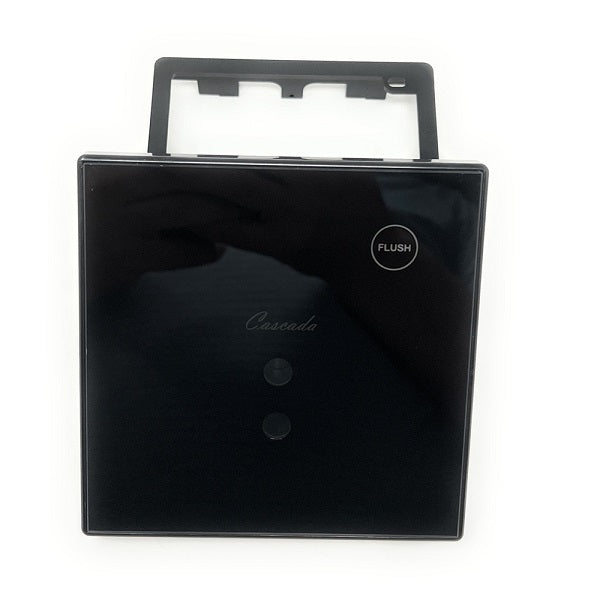

• Sleek Concealed Design: The low-profile glass panel blends seamlessly into any restroom decor, offering a clean and modern look.
• Water-Efficient Performance: Precisely calibrated flush volume helps conserve water without compromising performance.
• Hygienic & Reliable: Minimizes touchpoints to reduce the spread of germs, ideal for public and commercial restrooms.

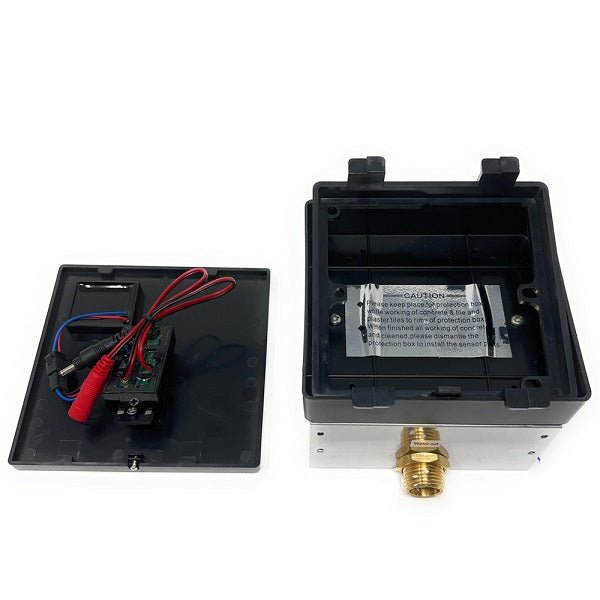

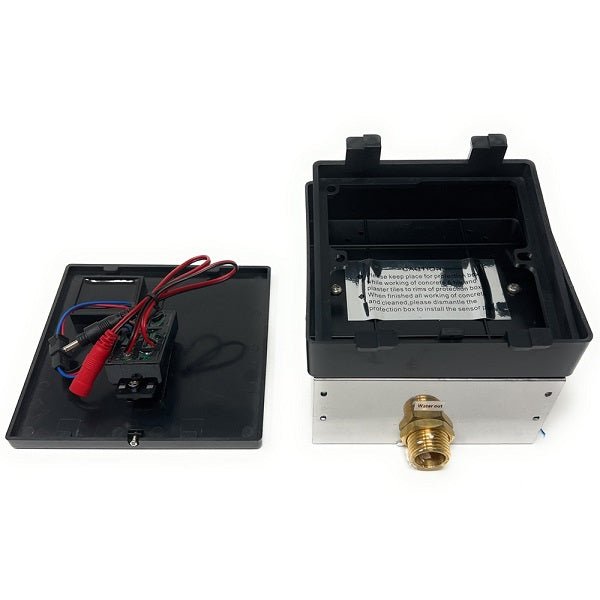

• Easy Maintenance: Concealed design with front-accessible components makes servicing quick and hassle-free.

Upgrade your restroom with smart, user-friendly flushing technology—only from Cascada Showers.

The Cascada Concealed Sensor Urinal Flush Valve (Glass Finish) is the perfect blend of innovative technology and environmental responsibility. Ideal for upgrading commercial restrooms, this flush valve ensures cleanliness, efficiency, and a modern aesthetic.

Technical Specifications:

• Flushing Technology: Automatic, sensor-operated system with pre-flush and main flush cycles for optimal hygiene.
• Water Efficiency: Designed to optimize water consumption while maintaining effective performance.
• Adjustable Flushing: Customizable flushing mechanism based on water supply pressure to ensure consistent performance.
• Water Consumption:
• 40 psi: Pre-Flush 0.22 GPF, Main Flush 0.5 GPF
• 70 psi: Pre-Flush 0.27 GPF, Main Flush 0.6 GPF
• 110 psi: Pre-Flush 0.35 GPF, Main Flush 0.78 GPF

Product Details:

• Model Number: CSHD611ADCB24
• Model Name: Bellagio

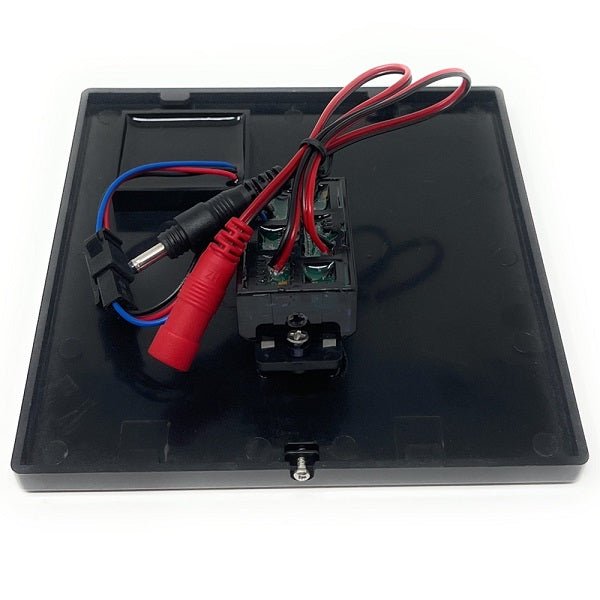

• Sensor Type: Infrared, AC and DC compatible
• Voltage: AC120V / DC6V
• Sensing Distance: Factory set at 25 inches
• Water Pressure Range: 40 psi - 110 psi
• Rinse Mode: Pre-flush and main flush
• Rinse Time: Approximately 5-7 seconds (adjustable)

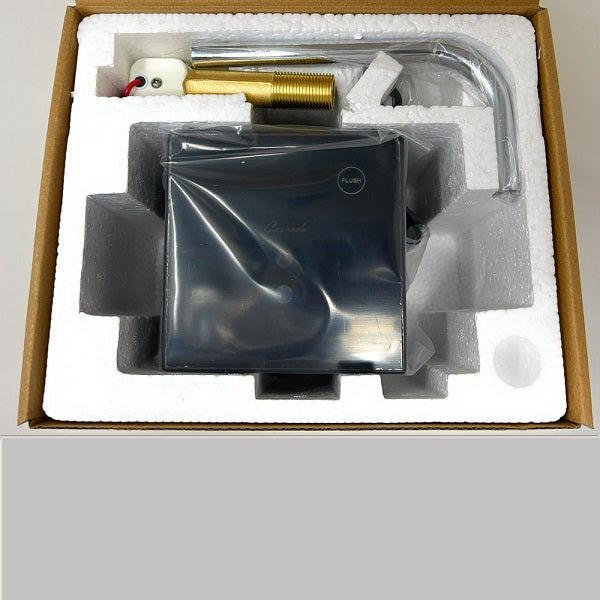

• Package Includes: 1 Urinal Flush Valve per box

Elevate the standard of your restroom with the Cascada Concealed Sensor Urinal Flush Valve. Combining advanced technology with a sleek design, this flush valve is your go-to solution for maintaining hygiene and efficiency in any restroom environment.
