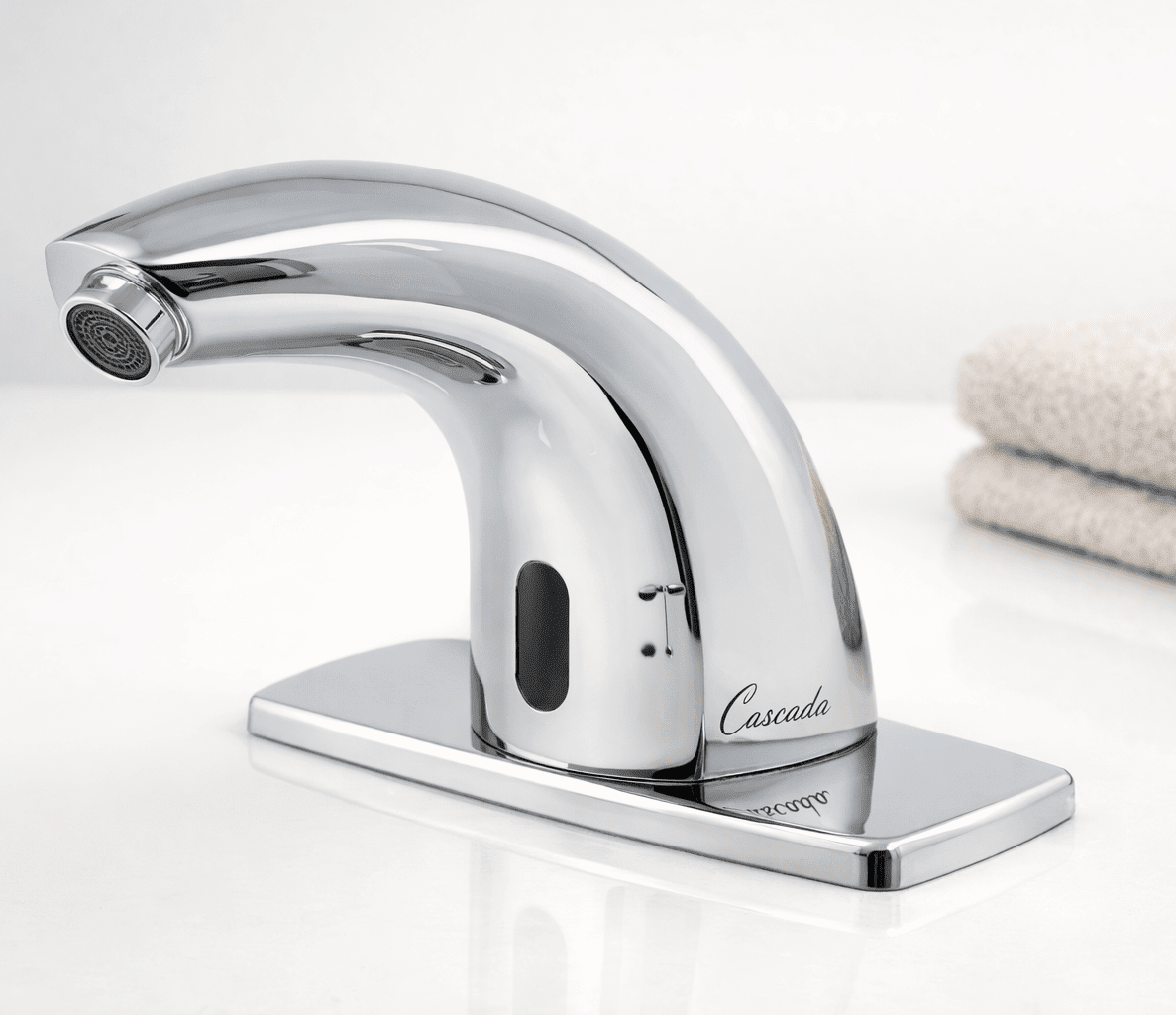

The EcoMotion infrared sensor faucet is designed for wash areas that require hands-free use, steady performance, and flexible installation. It works well in both residential and commercial spaces and includes a deck plate for replacing traditional multi-hole faucets.

Made for Retrofit Installations

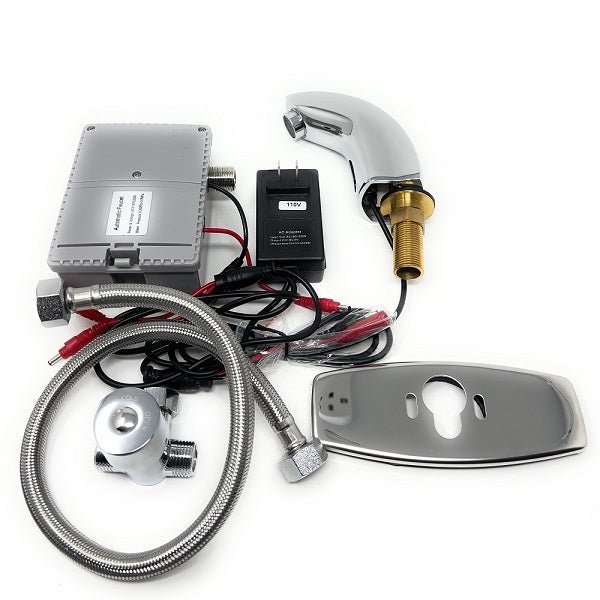

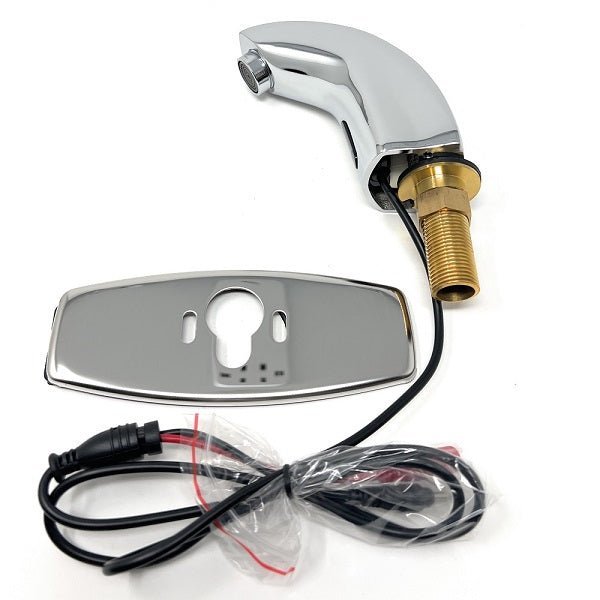

The included deck plate (trim) allows installation on sinks with existing three-hole layouts. This makes EcoMotion suitable for upgrades without changing the countertop.

Functional Highlights

• Touch-free infrared sensor operation
• Compatible with single-hole and three-hole sinks
• Automatic shut-off to control water use
• Supports hot and cold water mixing

Infrared Sensor Control

The sensor activates water flow when hands are detected and stops automatically when hands are removed. This helps reduce surface contact and supports cleaner shared wash areas.

Temperature Adjustment

An under-sink mixing valve allows manual control of hot and cold water. This keeps temperature settings simple while maintaining hands-free operation at the spout.

Power and Maintenance

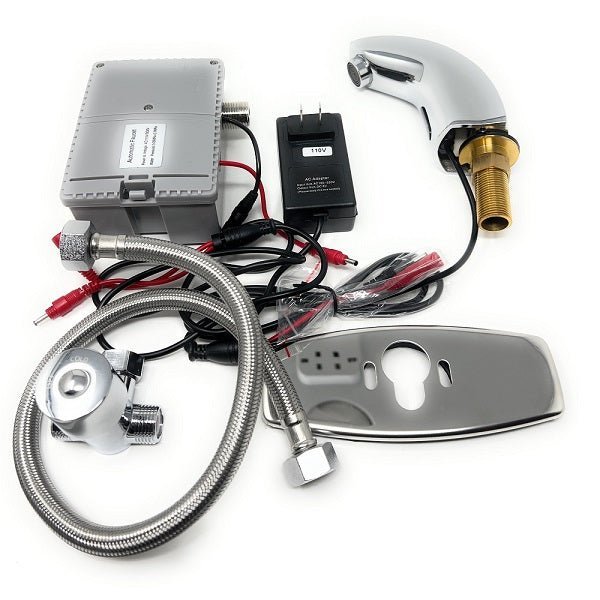

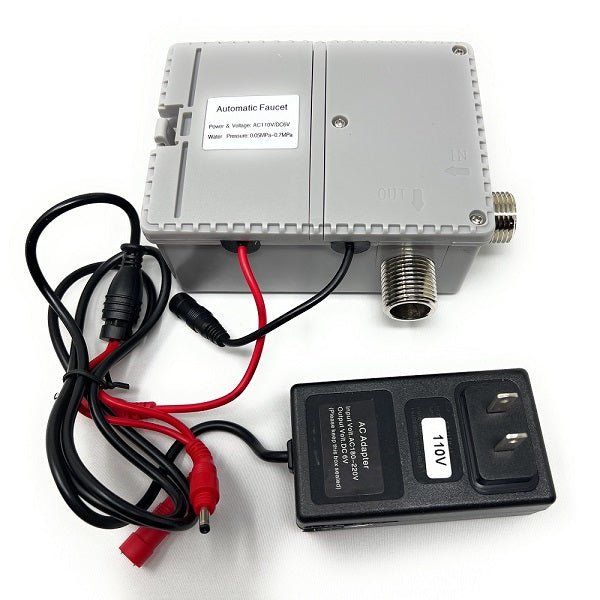

The faucet can operate using AA batteries or an optional AC adapter. A low-battery indicator alerts users when replacement is needed, and an in-line filter helps limit debris entry.

Design and Finish

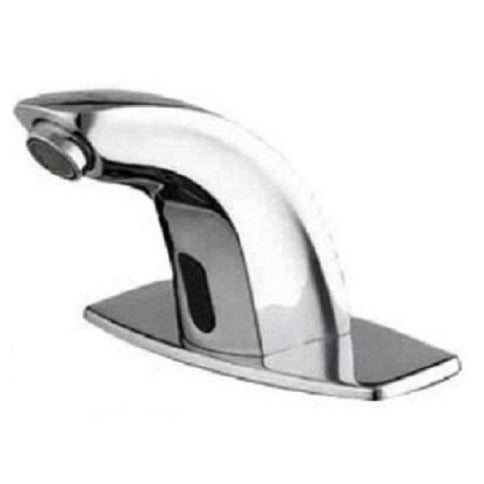

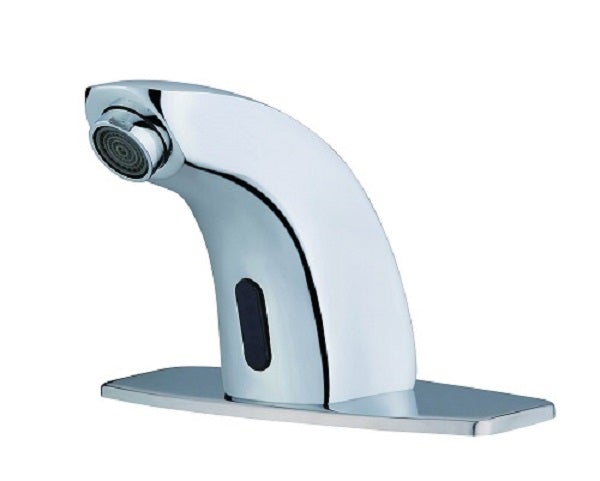

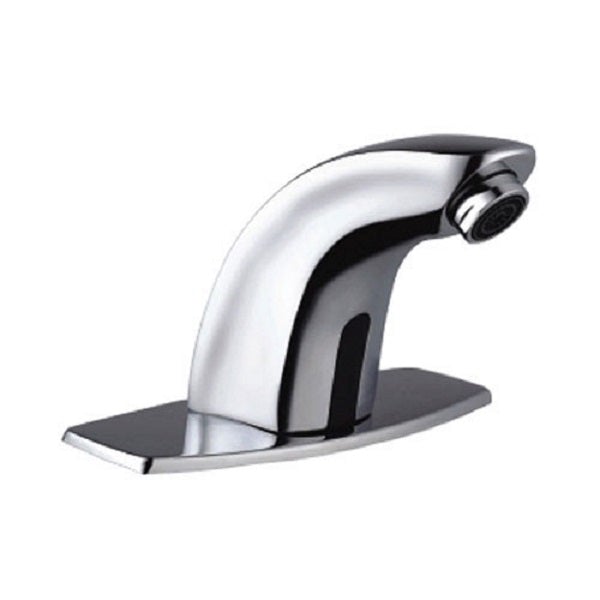

Made from stainless steel with a polished chrome finish, EcoMotion maintains a clean appearance while handling frequent daily use.

Specifications

• Infrared sensor operated, touch-free operation
• Advanced energy-saving design for long-lasting battery life

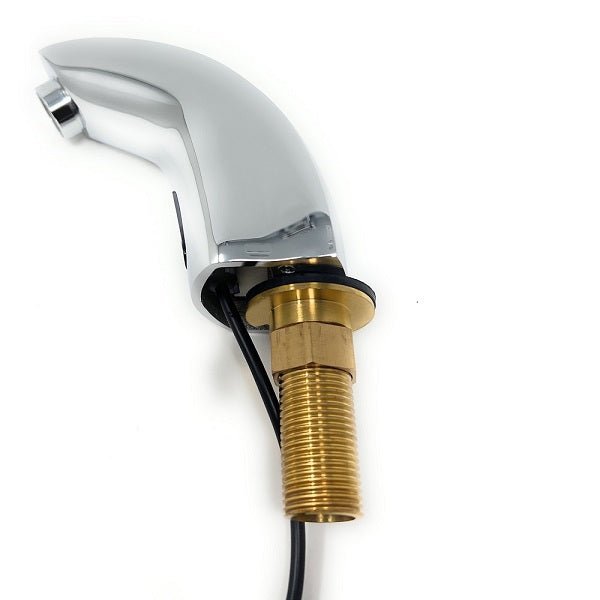

• Waterproof sensor components
• Weak battery LED light indicator
• Self-adjusting automatic sensing distance
• Operational water pressure range: 7 – 110 PSI
• Water supply pipe size: DN15 (G1/2”)
• Ambient temperature range: 32°F – 130°F
• Sensing distance: 2" – 10" (self-adjustable)
• Time delay: 0.5 seconds
• Operation duration: automatic cut-off after 60 seconds
• Pop-up drain: Optional
• Color: Chrome
• Mixer: Cold and hot water mixing by knob

Technical Details

• Model Name: EcoMotion
• Manufacturer Part Number (MPN): CSHD503ACB03
• Certification: CE, WRAS; ADA Compliant
• Color / Finish: Polished Chrome
• Shape: Curved
• Dual Power Supply: AA batteries or optional AC adapter (110–240V)
• Installation Method: Surface-mounted (includes deck plate for 3-hole sinks)
• Item Package Quantity: 1
• Number of Holes: 1
• Spout Height: 4.75 inches
• Spout Reach: 6 inches
• Handle/Lever Placement: Automatic
• Special Features: Easy to install
• Batteries Included: No
• Batteries Required: Yes
• Battery Cell Type: Alkaline / AA
• Average Battery Life: 2 years
• Item Package Weight: 7 pounds
• Package Dimensions: 10 × 15 × 12 inches
