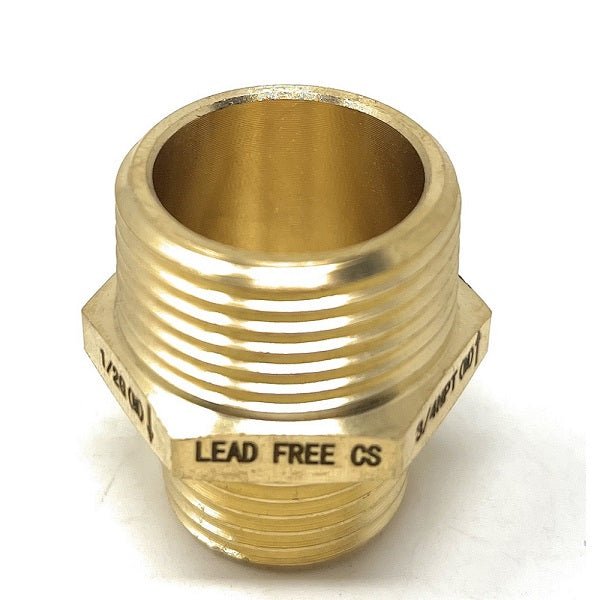

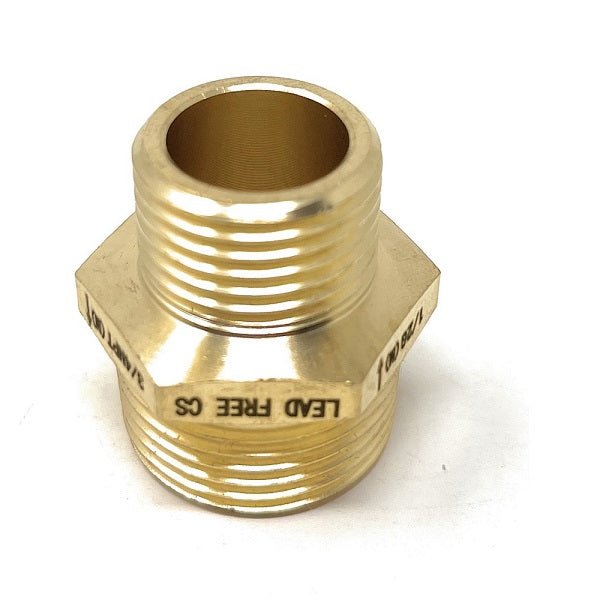

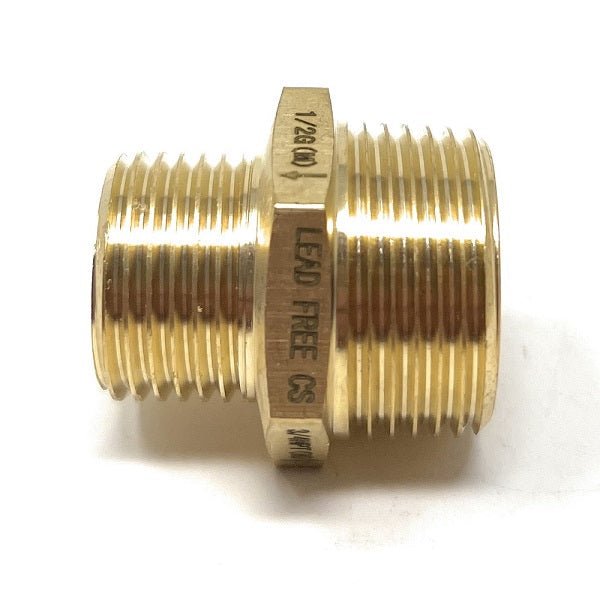

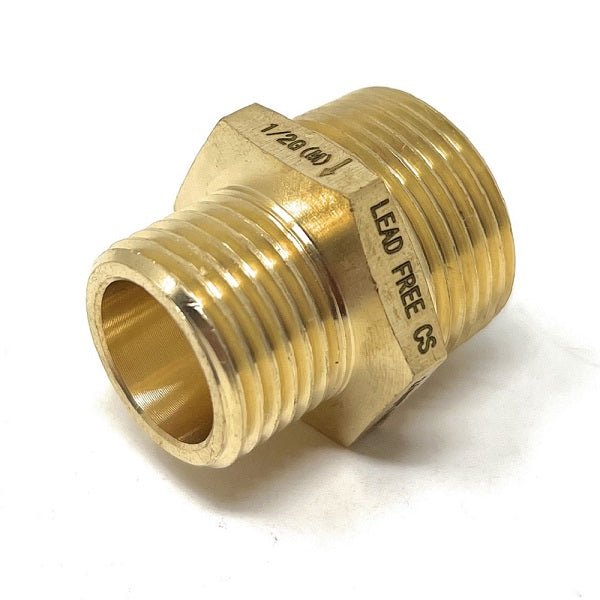

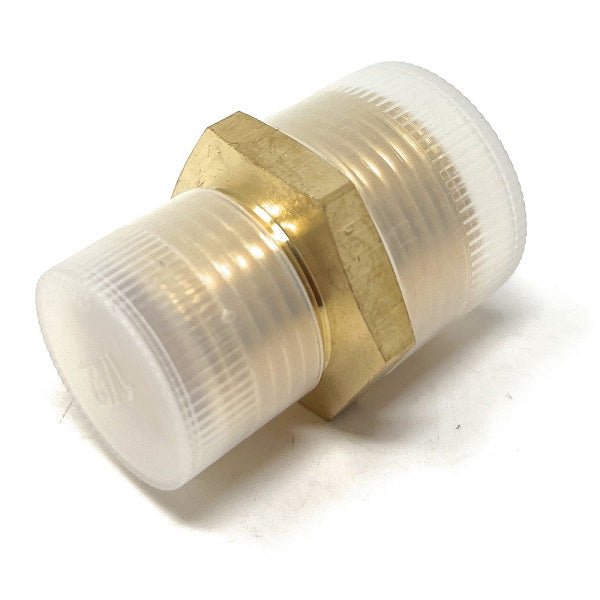

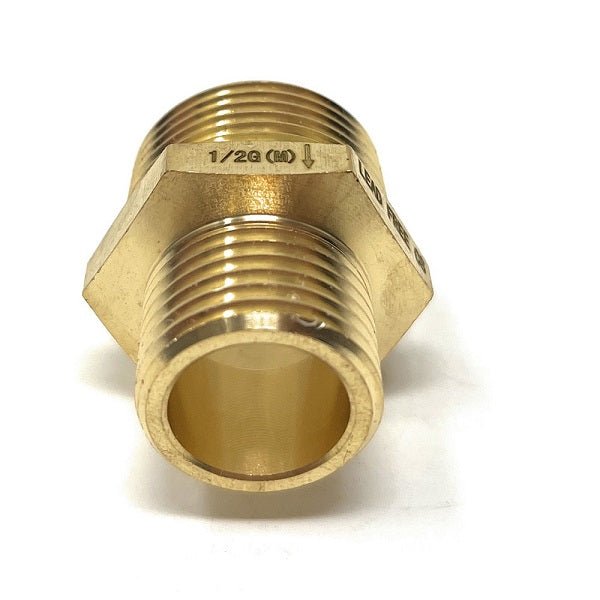

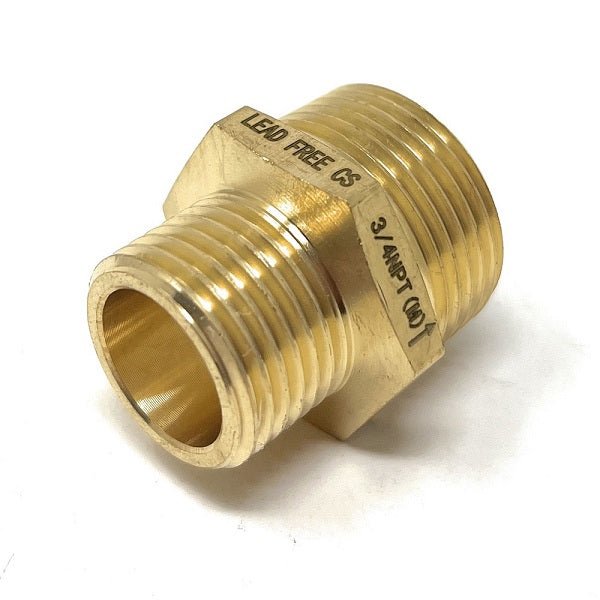

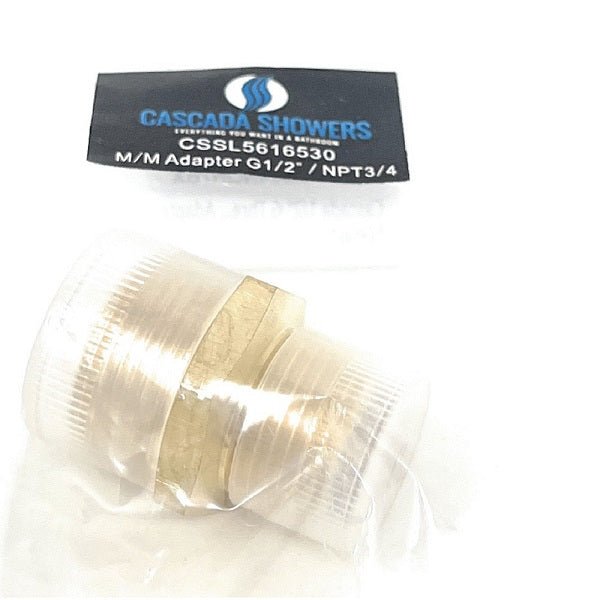

BSPP and NPT threads don't play well together — they look similar but are cut at different angles and won't seal without an adapter made for the job. This brass fitting bridges a G 1/2" male (BSPP) thread to a 3/4" NPT male thread, giving you a secure, leak-free connection between the two standards without improvising with tape or forcing incompatible fittings. Lead-free construction and a lifetime warranty back it for residential and commercial installations.

Specifications

• Size: 1/2" G Male × 3/4" NPT Male
• Thread Standard (inlet): BSPP (British Standard Pipe Parallel), G 1/2"
• Thread Standard (outlet): NPT (National Pipe Thread), 3/4"
• Material: Lead-free brass
• Finish: Brass
• Pressure Rating: Up to 230 psi
• Temperature Range: -65°F to +250°F (-53°C to +121°C)

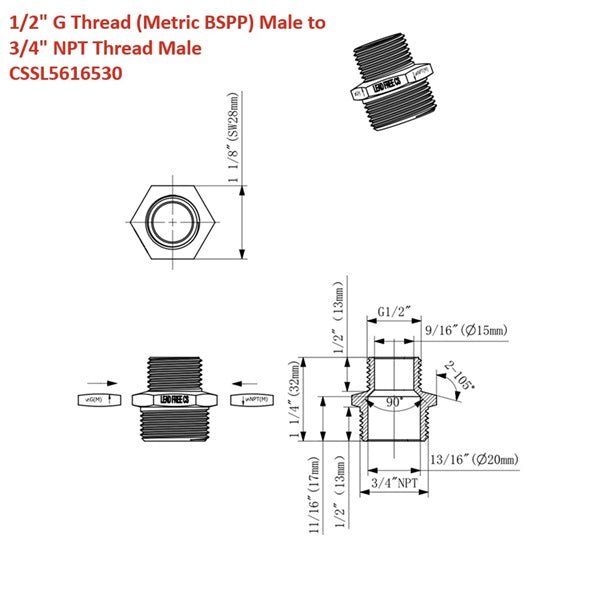

• Dimensions: 1.75 × 2 × 2 inches
• Weight: 3.2 oz
• Style: Male × Male
• Model: CSSL5616530
• Brand: Cascada Showers
• Warranty: Lifetime
• Package: 1 adapter

What It Does

Connects a G 1/2" male thread — common on European and Asian plumbing fixtures, shower valves, and Cascada products — to a 3/4" NPT male fitting standard in US residential and commercial plumbing. Precision-machined threads seat cleanly and hold at pressures up to 230 psi across a temperature range from deep cold to hot water service. No sealant gimmicks required — just proper thread engagement and standard PTFE tape on the NPT side.

Corrosion Resistance and Lead-Free Compliance

Brass resists the mineral deposits and chemical exposure that corrode cheaper zinc or plastic adapters over time. Lead-free construction meets safe drinking water standards for potable water lines — no restriction on where this fitting can be used in residential plumbing.

Who Uses This

Plumbers and contractors connecting imported or European-spec fixtures — shower valves, handheld shower arms, faucets — to US standard supply lines. Also used by homeowners installing Cascada shower systems that ship with G 1/2" connections onto existing 3/4" NPT supply infrastructure.

Need a different size or thread combination? Browse the full shower fitting adapter range at Horizon Direct Depot.
